Milling and turning HARDOX (and other hardened steels and steels for hardening). Cutting with water, to prevent overheating. 50mm thick and more.
Lets just talk - it will be the fastest way to fulfill your needs.
Fill out the form, provide a documentation you have, so we can discuss your design, call you back and give you a solution.
Check out the gallery of our realisations, to compare Your prices, designs, amount of pieces that we can make for you.

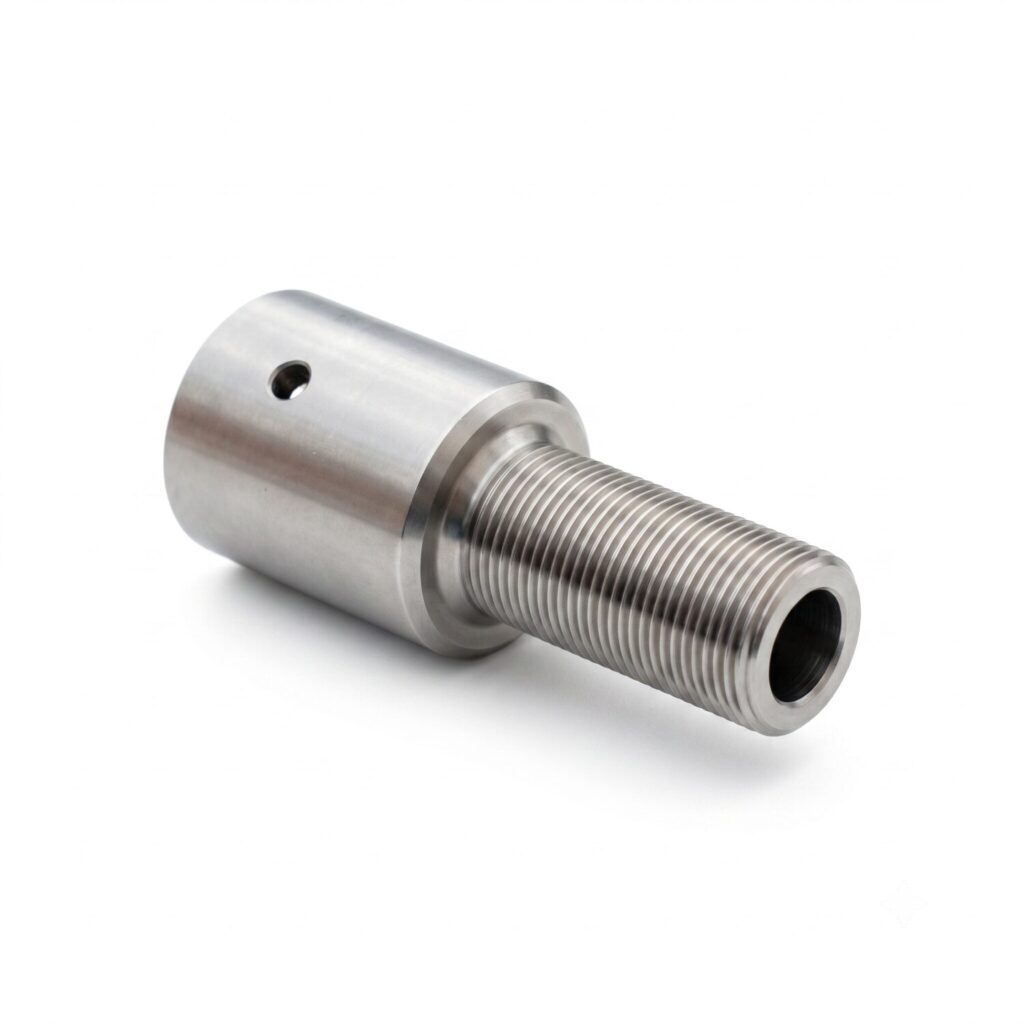

High precision turned INOX and HARDOX details with Y-axis holes, undercutts and threades.
Turned product, made of INOX steel, with diameter of 42mm and leght of 110mm. Accuracy of the top surface is up to 0,02mm. The product has a fine thread and the hole in the solid axis was made on a lathe with driven tools, which ensures perfect accuracy.
The detail is turned inside along the entire length.
Order quantity: 150 pcs/year-quarter
Price per piece: 125 PLN (certified material included)

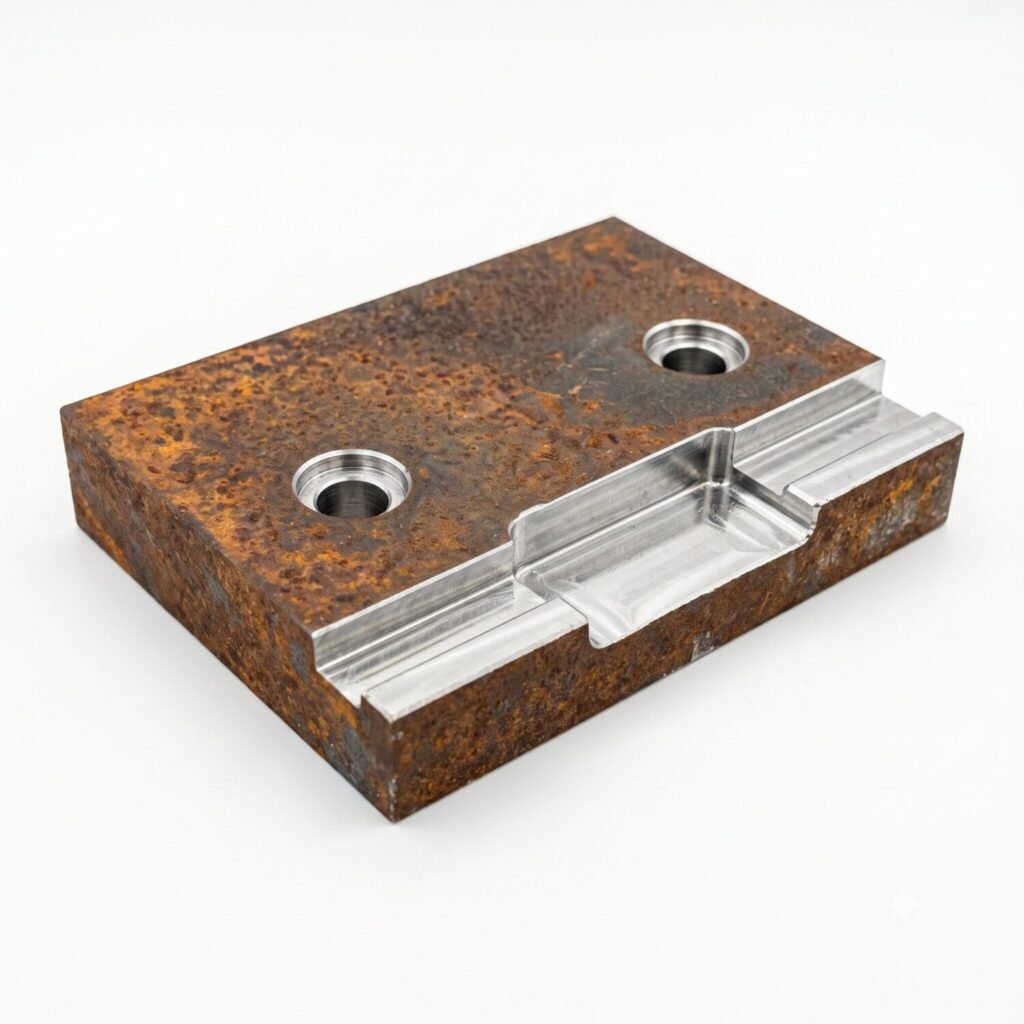

Hardox milled elements for precise mounting of wearable components.
Hardox steel elements, plasma cuted out of sheet metal with 50mm thickness. Milled with precision up to 0.05mm, to ensure solid mount for hardened elements which are worrying out during construction work.
Order quantity: 300 pcs/year
Price per piece: 175 PLN (excluding material cost)
Precision made milled threaded holes in products avilable on the market.

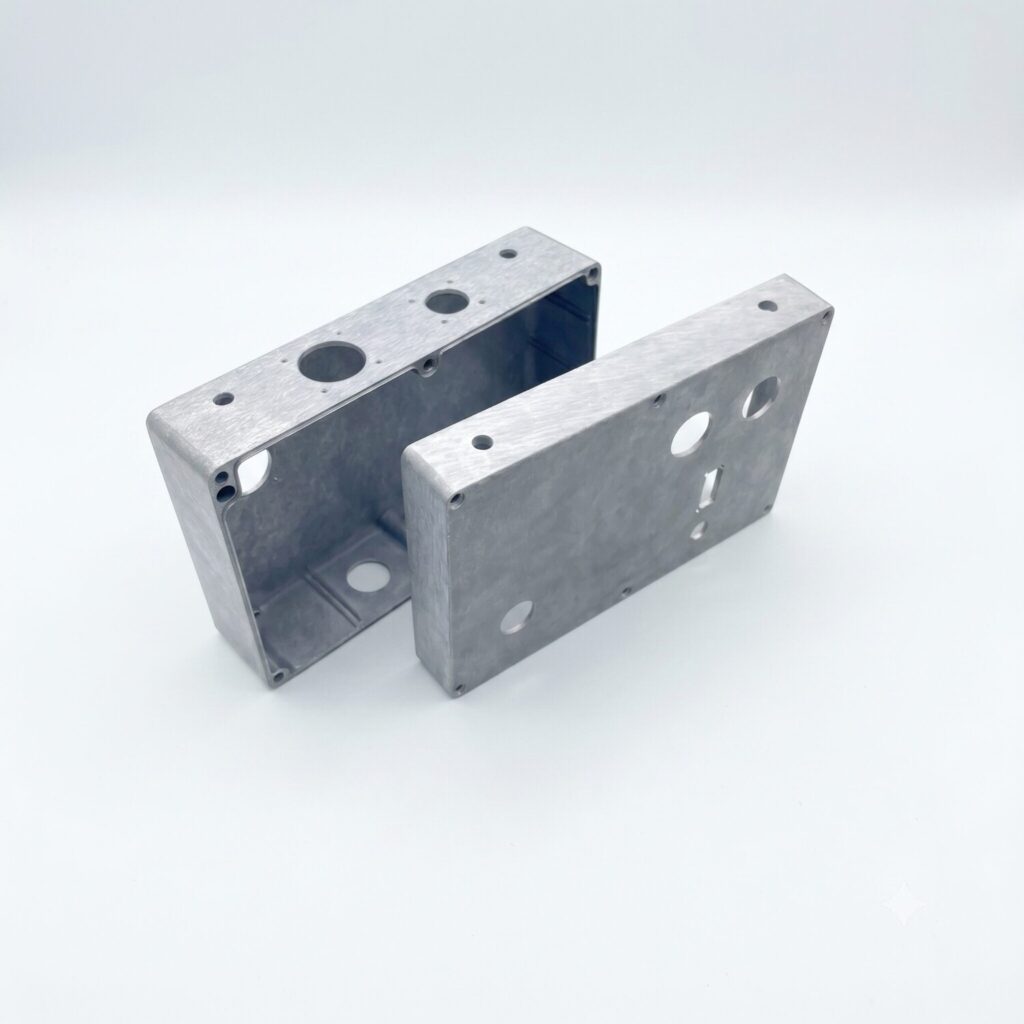

Milled aluminium alloy box for electronics. Procisesly made threaded holes, for electronical connectors on every side of the product.
Order quantity: 30 pcs
Price per piece: 100 PLN (excluding material costs)
High precision milled custom made blocks. Inch threads, procise undercuts, long throughout drilled holes.

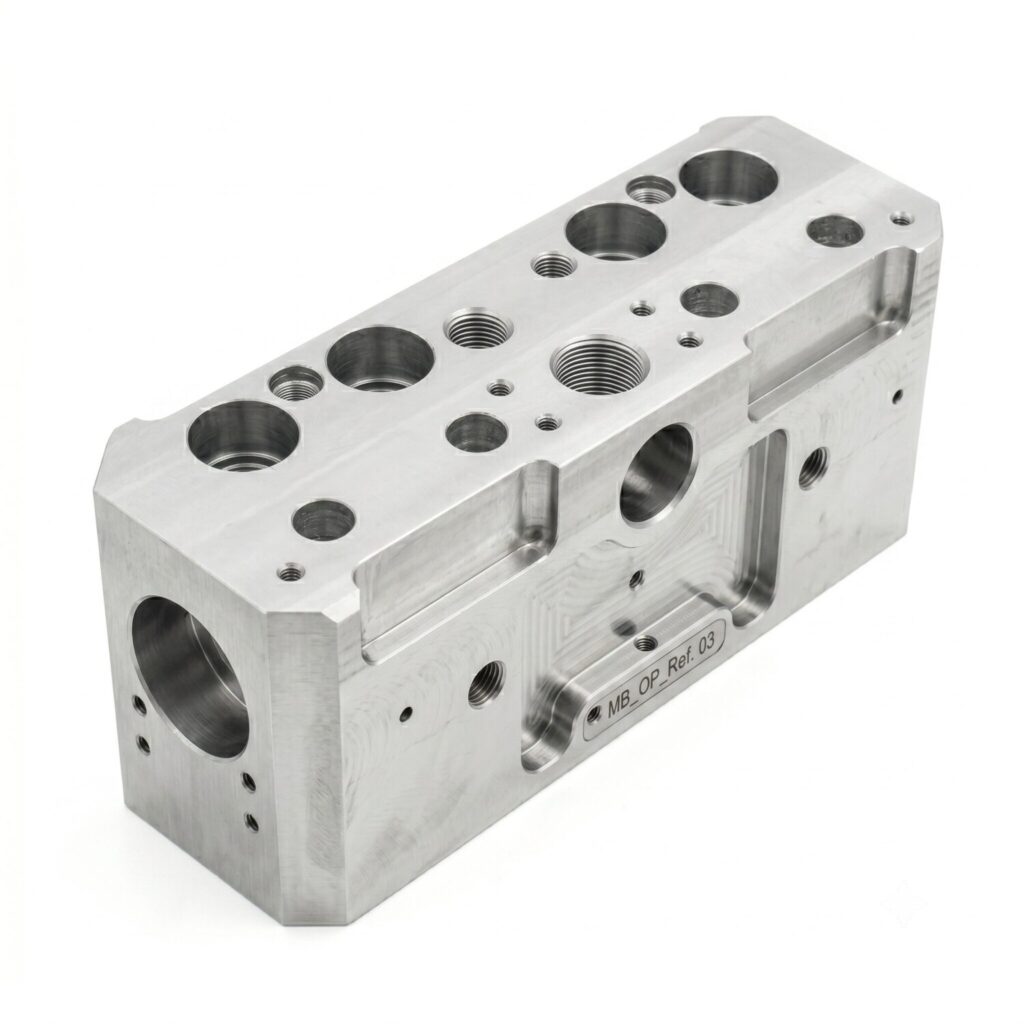

A steel block measuring 600mm x 250mm x 320mm, precision drilled and tapped for high-pressure hydraulic connections. All holes are to an “h7” tolerance. It includes a 600mm-long through-hole.
Order quantity: 6
Price per piece: 8000 PLN (excluding material costs)

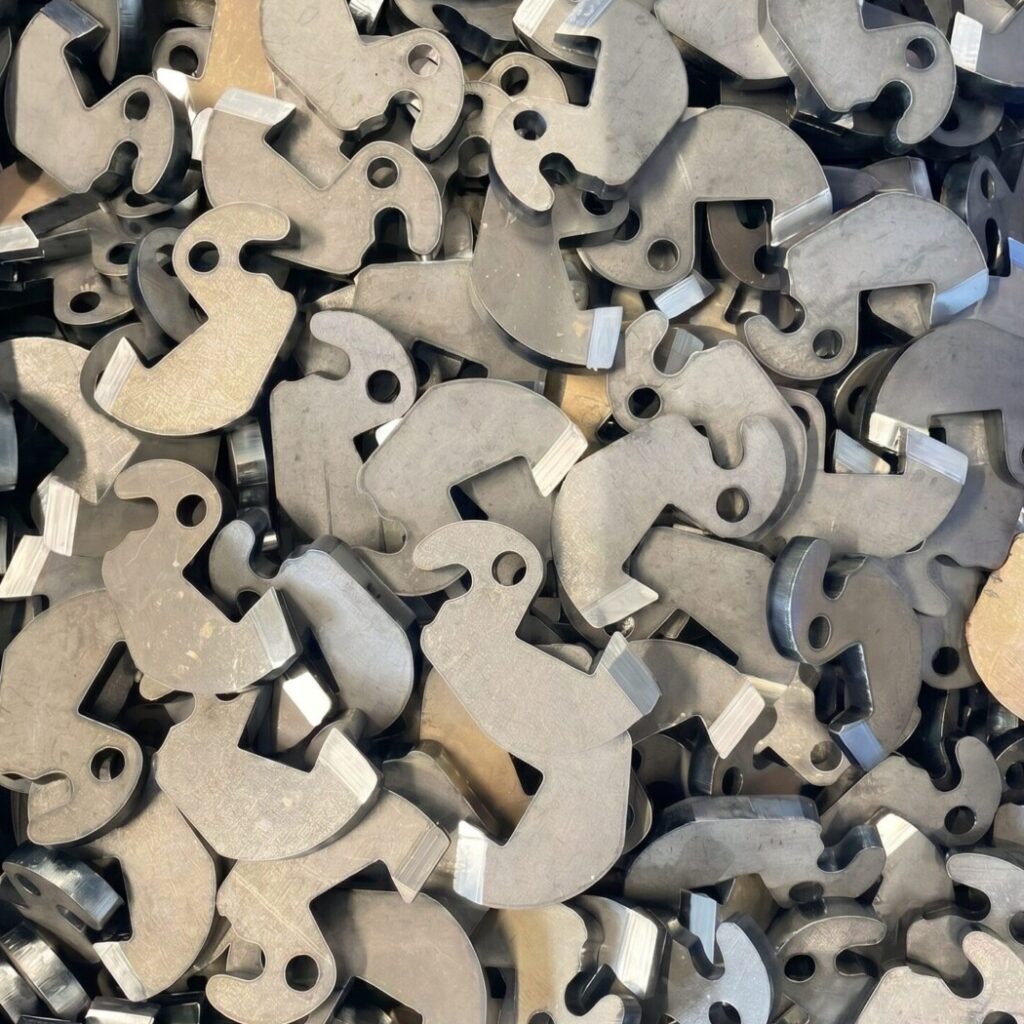

High quantity of small, sanded and milled elements.
A steel elements, 50mm x 50mm x 10mm, laser cut, sanded around and miller procesely on both edges.
Order quantity: 1000 psc/month
Price per piece: 3 PLN (excluding laser cuting and material costs)

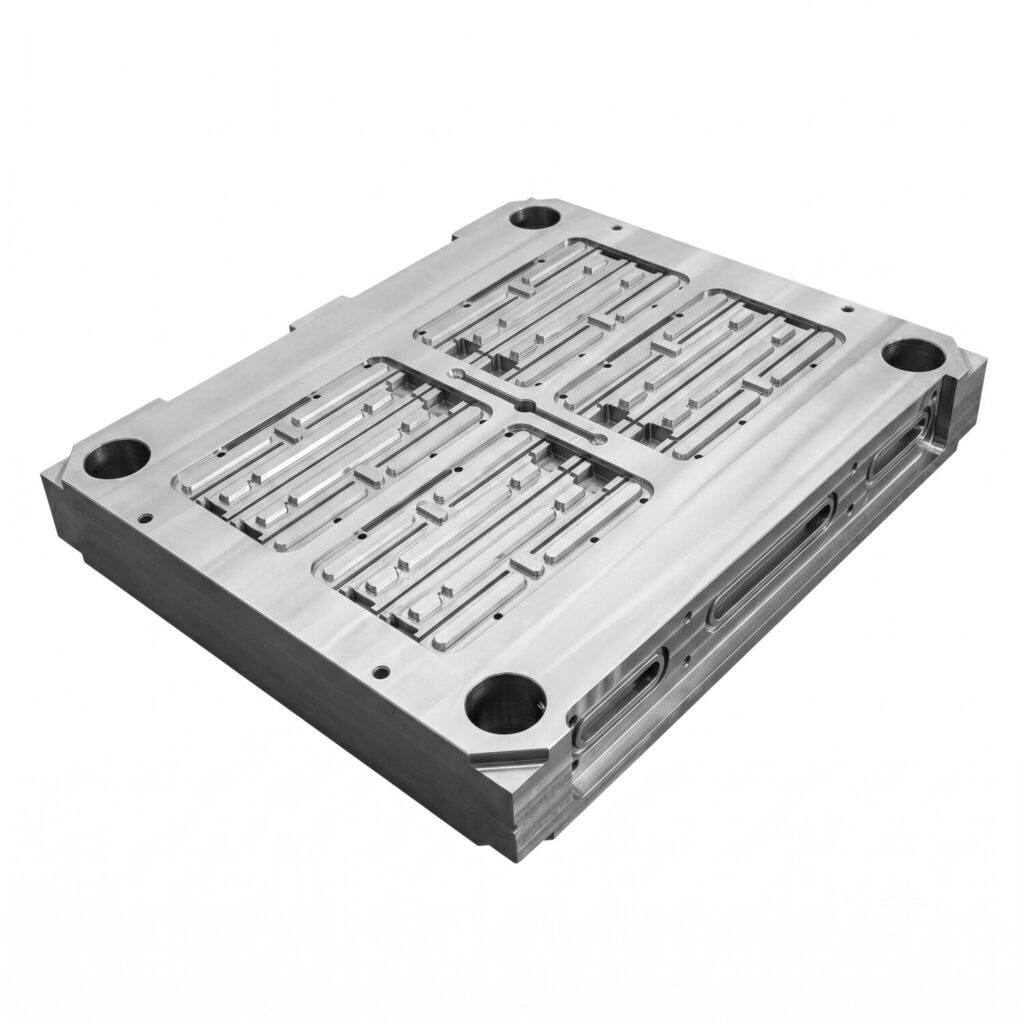

4-Cavity Precision Injection Mold Tool
This is a high-precision, four-cavity steel injection mold tool designed for producing complex components. The main cavity and core forming plates measure 450mm by 450mm. The mold features intricate internal geometries, visible central X-shaped runner channels for balanced material flow, and multi-axis core pulling mechanisms (indicated by side sliders) to form complex side details. This is a comprehensive tool assembly, including a complete stack of clamping plates for press mounting and a comprehensive ejector system plate set for part removal.
Order quantity: 1 piece
Price per piece: 20 000 PLN (excluding material costs)

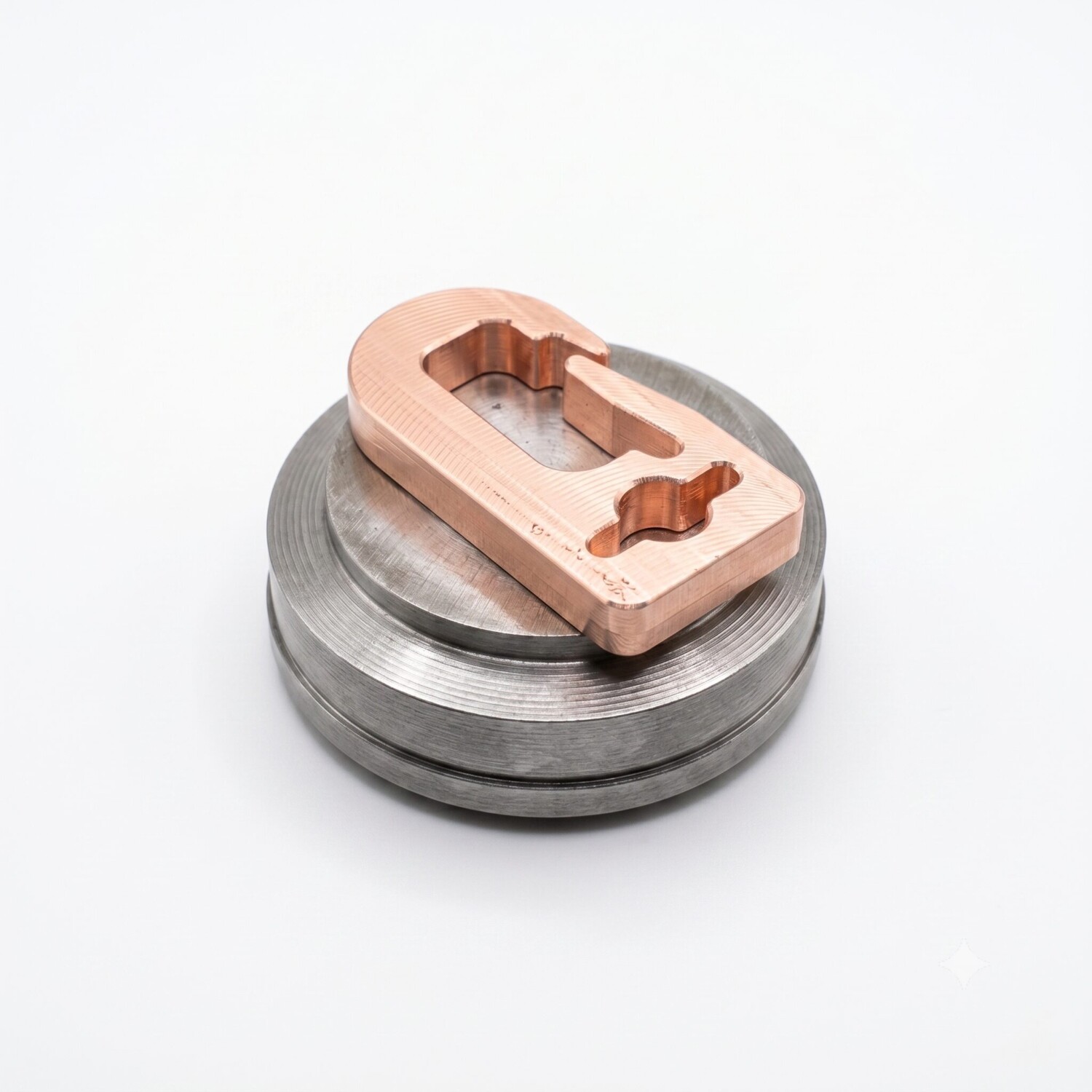

Copper electrodes for spark-erosion for moulding forms and other usecases.
This product is fully designed, engineered, and manufactured through a 100% in-house production process. The injection mold is precisely spark-eroded using a custom-fabricated copper electrode. The final components, measuring 30mm x 15mm x 5mm, are produced entirely within our facility.
Order quantity: 1 piece
Price per piece: 10 000 PLN (excluding material costs)

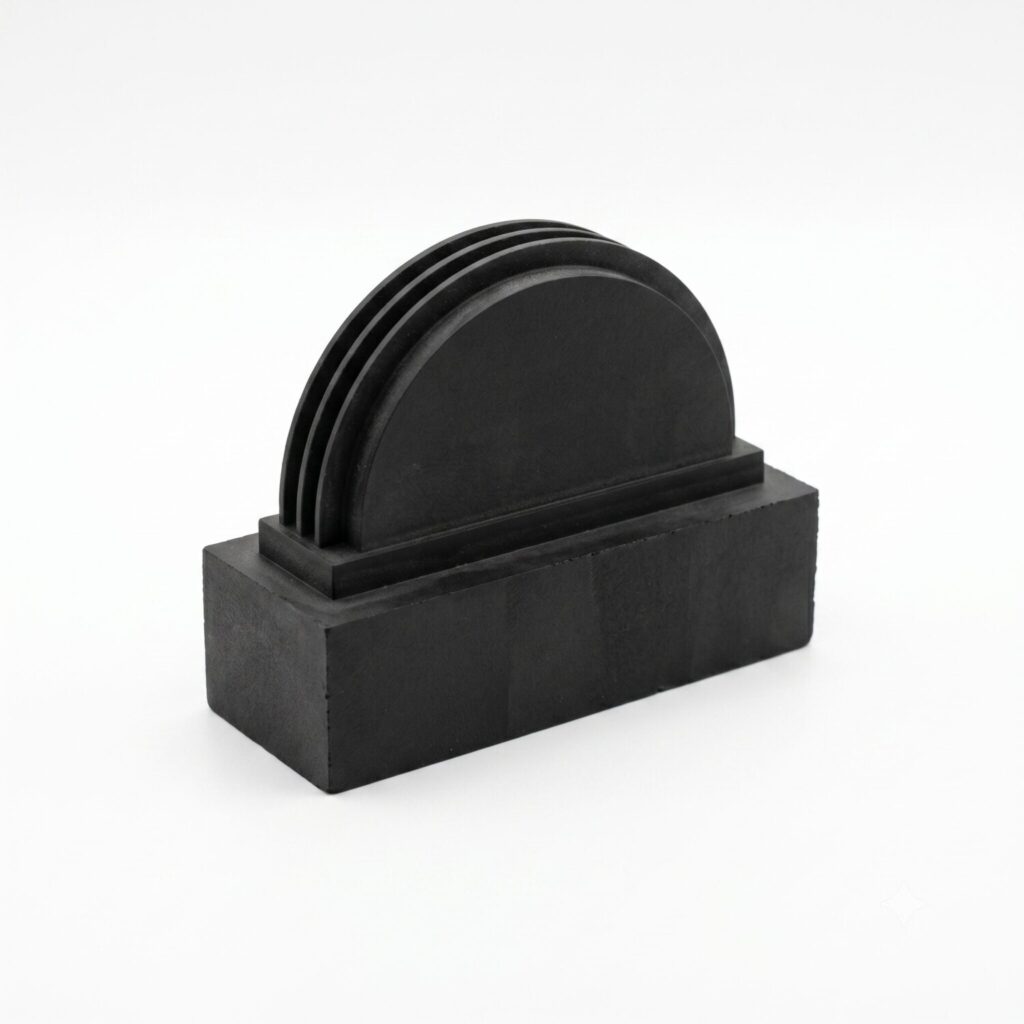

Graphite electrodes for spark-erosion for moulding forms and other usecases.
This product is also fully designed, engineered, and manufactured in-house. The injection mold is precisely spark-eroded using a custom-fabricated graphite electrode. The final component, measuring 50mm x 15mm x 50mm, is produced entirely within our facility. It is a part used for spark-eroded injection moulding form for our product, which you can find below.
Order quantity: 1 piece
Price per piece: 450 PLN (excluding material costs)

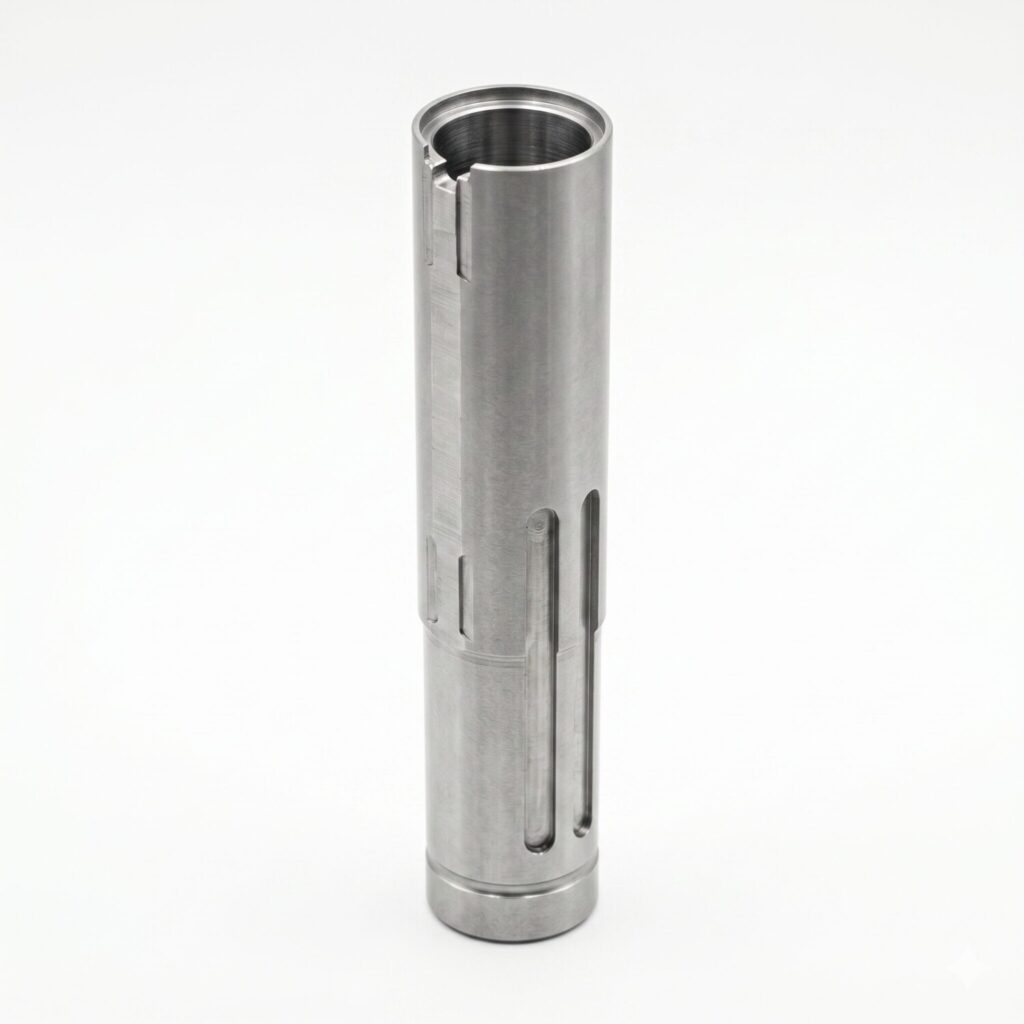

Turnin with Y-axis longitudinal slotting
All complex features – including turning, face-milling, longitudinal slotting, and precise undercuts – are executed entirely on a single multi-axis CNC turn-mill machine. By eliminating the need for part repositioning, maximum geometric accuracy and perfect concentricity are guaranteed.
Order quantity: 20 piece
Price per piece: 120 PLN (excluding material costs)

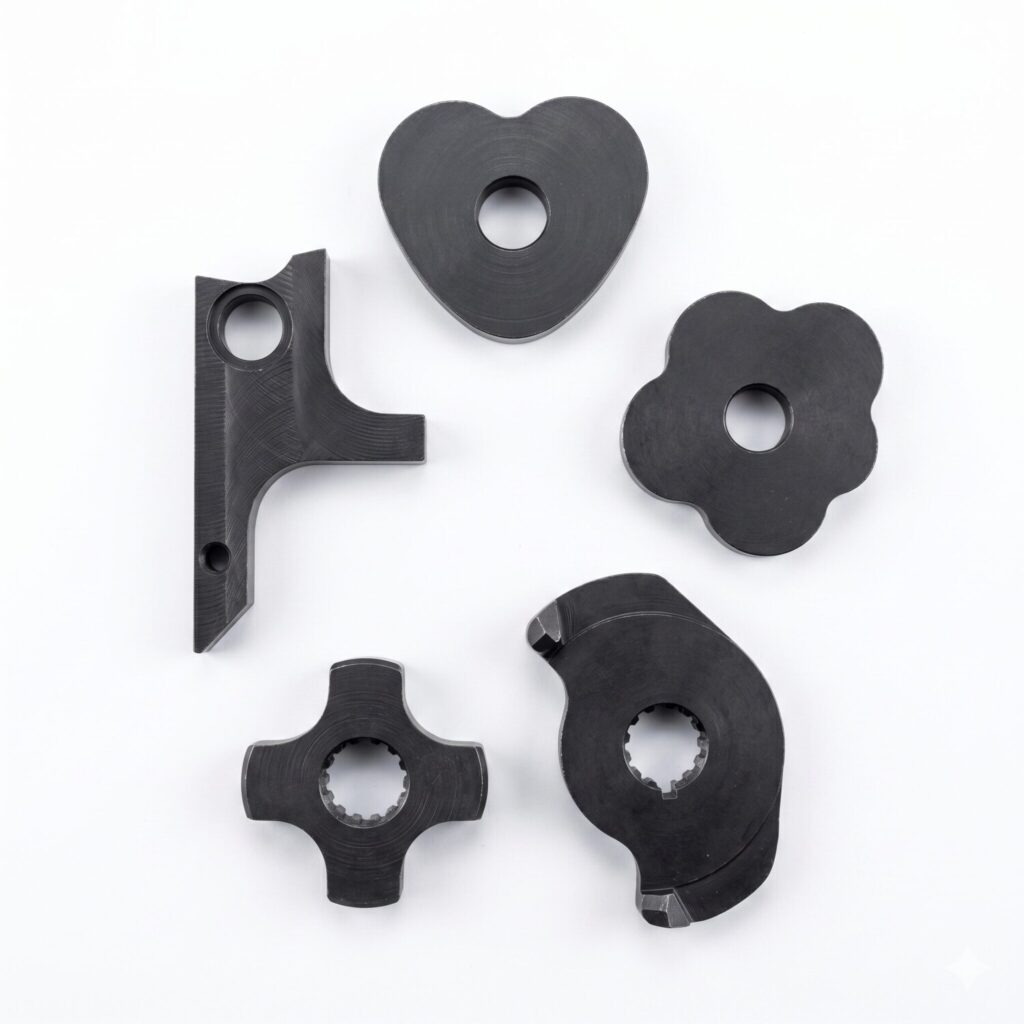

Reverse engineering techniques – bring Your element and manufacture the same one in Our company.
This set of five precision, black-oxided cams and machined components is engineered with accuracy up to 0.02mm. Each piece features a unique geometry, meticulously developed and optimized in-house using 3D scans and measurements.
Sizes are about 80mm x 80mm x 15mm each.
This process guarantees exact component match of element You need.
Order quantity: 5 pieces of each shape
Price per piece: 200 PLN (excluding material costs)

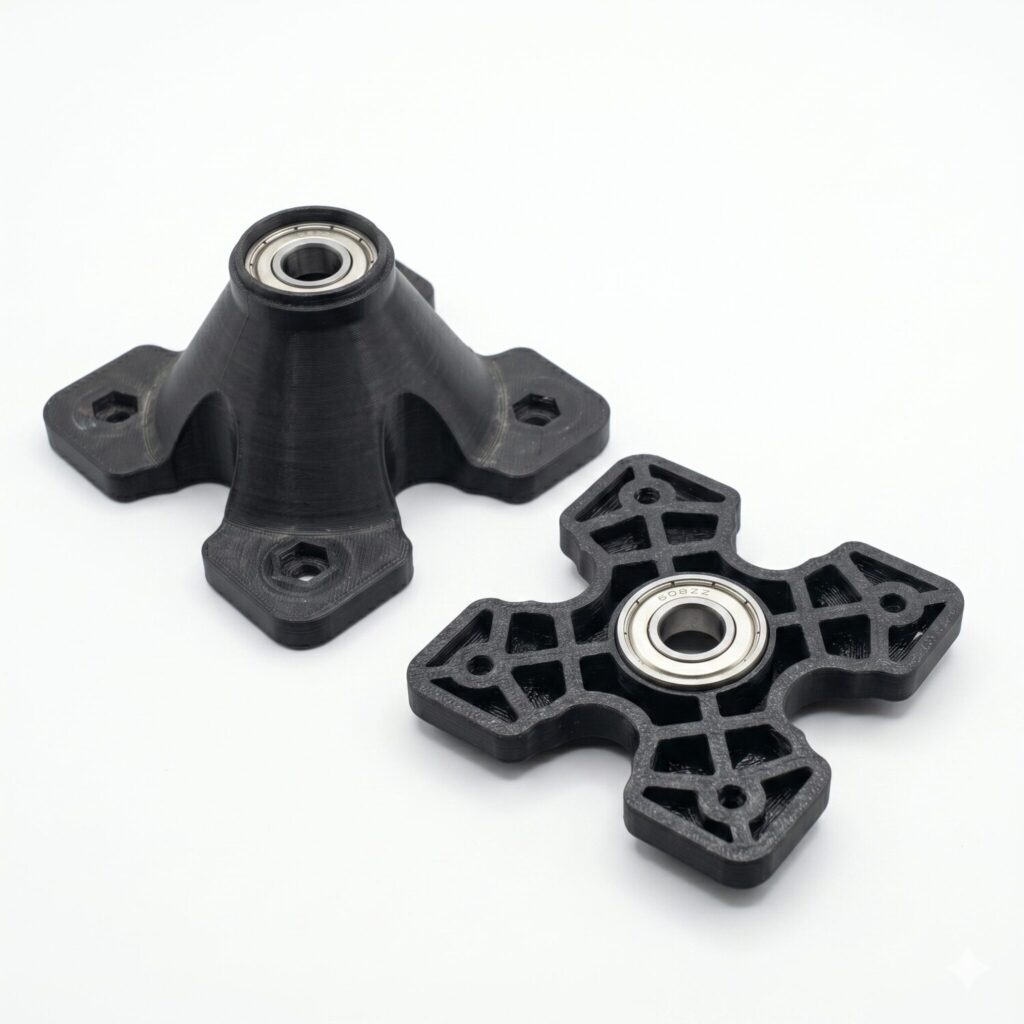

3D printed prototypes – to ensure proper geometry before millig or turning.
When designing any new for Our client our ourselfes, we offer a series of test 3D prints, to ensure proper geomtery and functions.
Read about our machinery, so you can imagine our abilities to fulfil Your needs.
Biglia 465 Y turning machine with Y axle
| TECHNICAL FEATURES | B465 Y |
|---|---|
| Material bar max. dimension | 70mm |
| Max. machining diameter | 200mm |
| Max. machining length | 350mm |
| Y-axis travel | 90mm |
| Quantity of heads with rotating tools | 2 |
Robot loader iemca for Biglia 465 Y
| TECHNICAL FEATURES | Robot loader iemca |
|---|---|
| Material bar max. dimension | 75mm |
| Max. detail lenght | 220mm |
AFM DEFUM TAE 35N – turning machine with Y axle
| TECHNICAL FEATURES | TAE 35N |
|---|---|
| Material bar max. dimension | 75mm |
| Max. machining diameter | 300mm |
| Max. machining length | 490mm |
| Y-axis travel | 65mm |
| Quantity of heads with rotating tools | 1 |
AFM DEFUM VENUS 350 – turning machine
| TECHNICAL FEATURES | VENUS 350 |
|---|---|
| Material bar max. dimension | 80mm |
| Max. machining diameter | 300mm |
| Max. machining length | 520mm |
| Y-axis travel | 40mm |
| Quantity of heads with rotating tools | 1 |
AFM DEFUM e-550r – milling machine
| TECHNICAL FEATURES | AFM DEFUM e-550r |
|---|---|
| Table work surface | 1120x360mm |
| Longitudinal “X” axis | 550mm |
| Transverse “Y” axis | 410mm |
| Vertical “Z” axis | 510mm |
| Linear axis positioning accuracy | +/- 0.005mm |
| Maximum spindle speed | 8000rpm |
| Number of tools | 20 |
| TECHNICAL FEATURES | AFM DEFUM e-1000r |
|---|---|
| Table work surface | 1720x500mm |
| Longitudinal “X” axis | 1000mm |
| Transverse “Y” axis | 510mm |
| Vertical “Z” axis | 560mm |
| Linear axis positioning accuracy | +/- 0.005mm |
| Maximum spindle speed | 8000rpm |
| Number of tools | 20 |
How can we cooperate?
We believe that great collaborations begin with a simple conversation. Our most successful projects are built on mutual trust and a clear understanding of our partners’ needs.
The easiest way to begin is by reaching out to us via email or phone. We will get back to you as soon as possible, typically within a few hours to a few business days, depending on our current workload. Don’t hesitate to contact us – every great partnership starts with a discussion.
If you are curious to see our production process firsthand, our doors are always open. We’ll be happy to host you for a visit. We serve great Italian coffee, and you might even be lucky enough to try some delicious cake from a local bakery!
